Reef Resilience

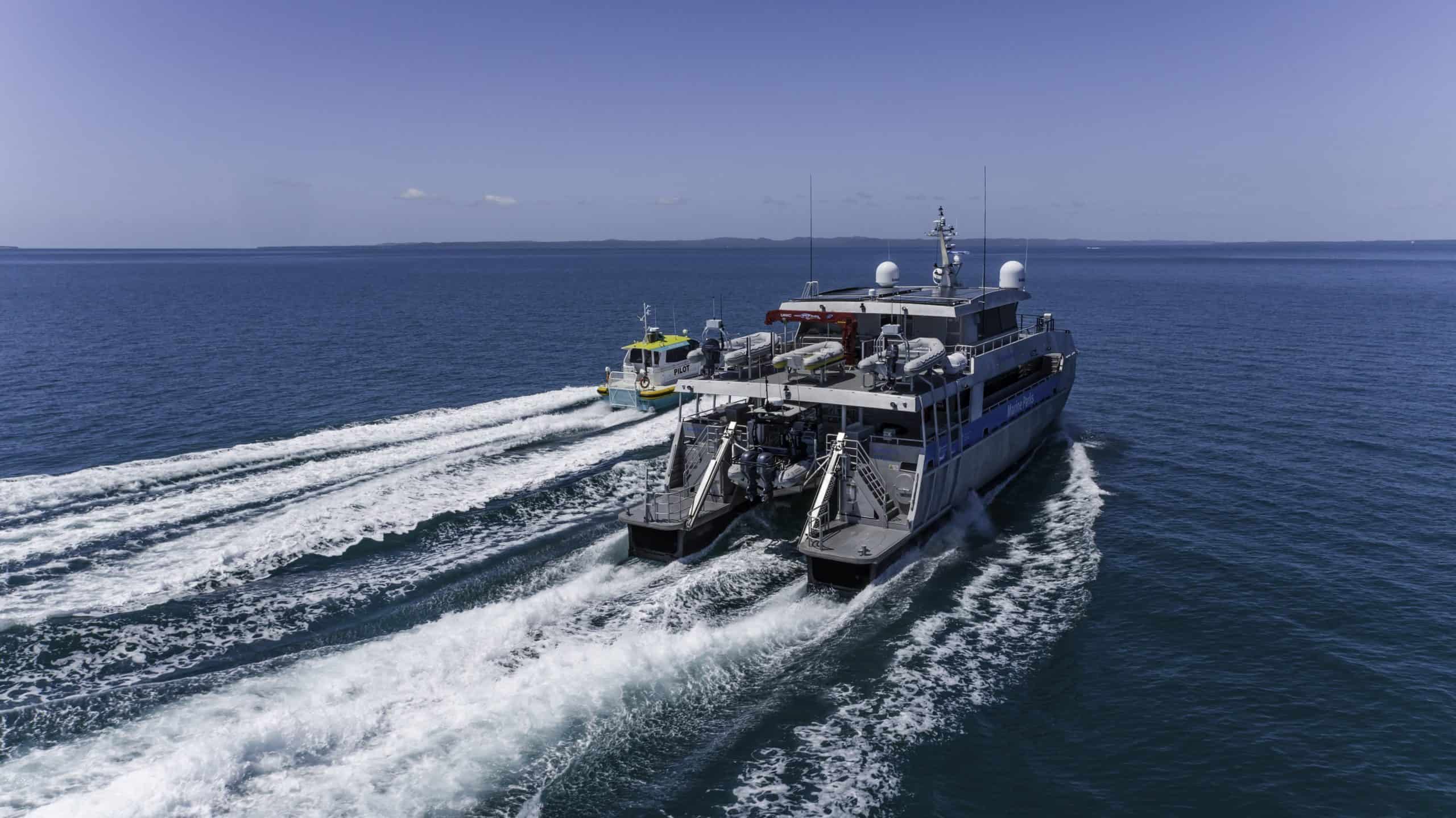

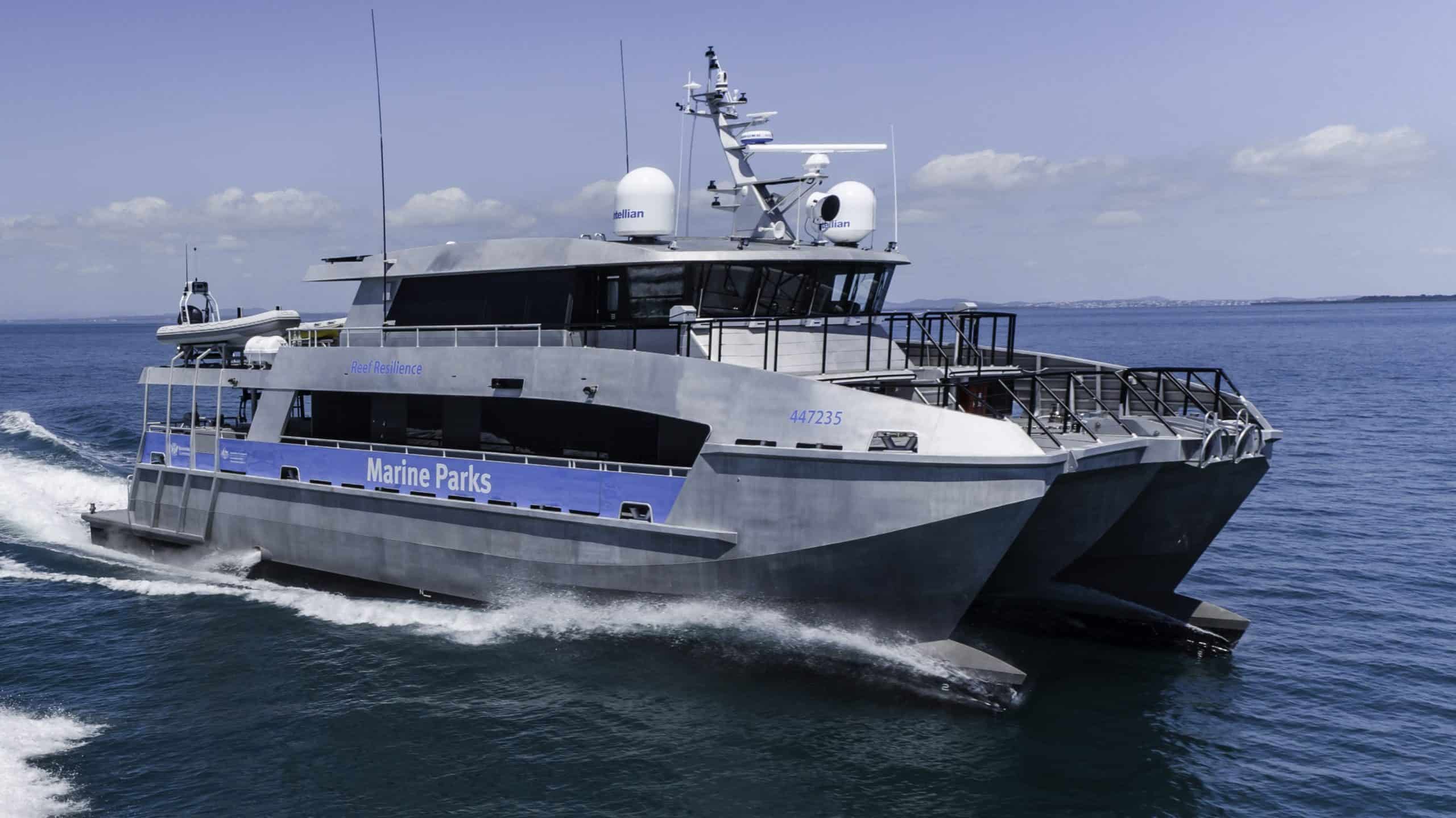

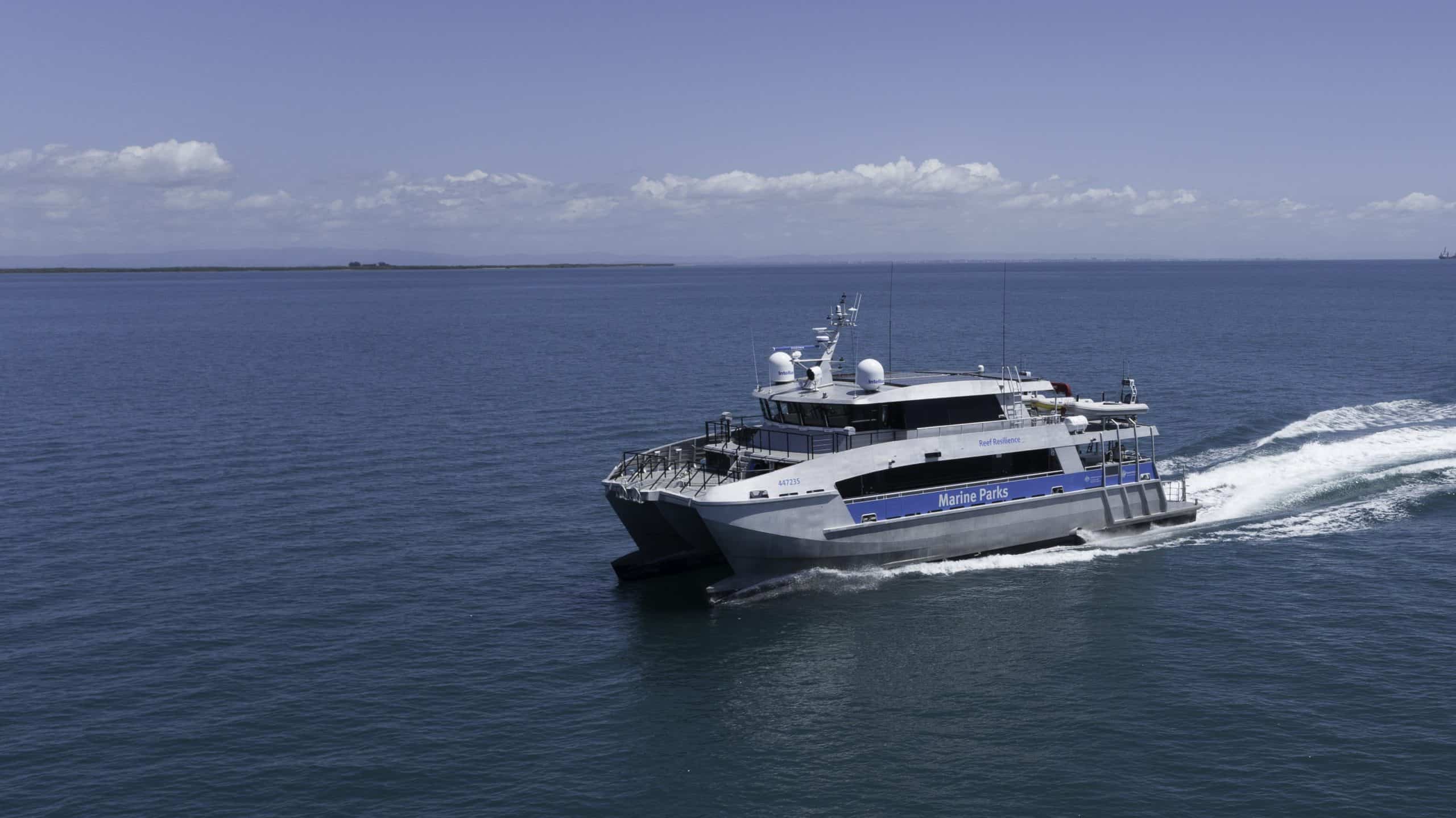

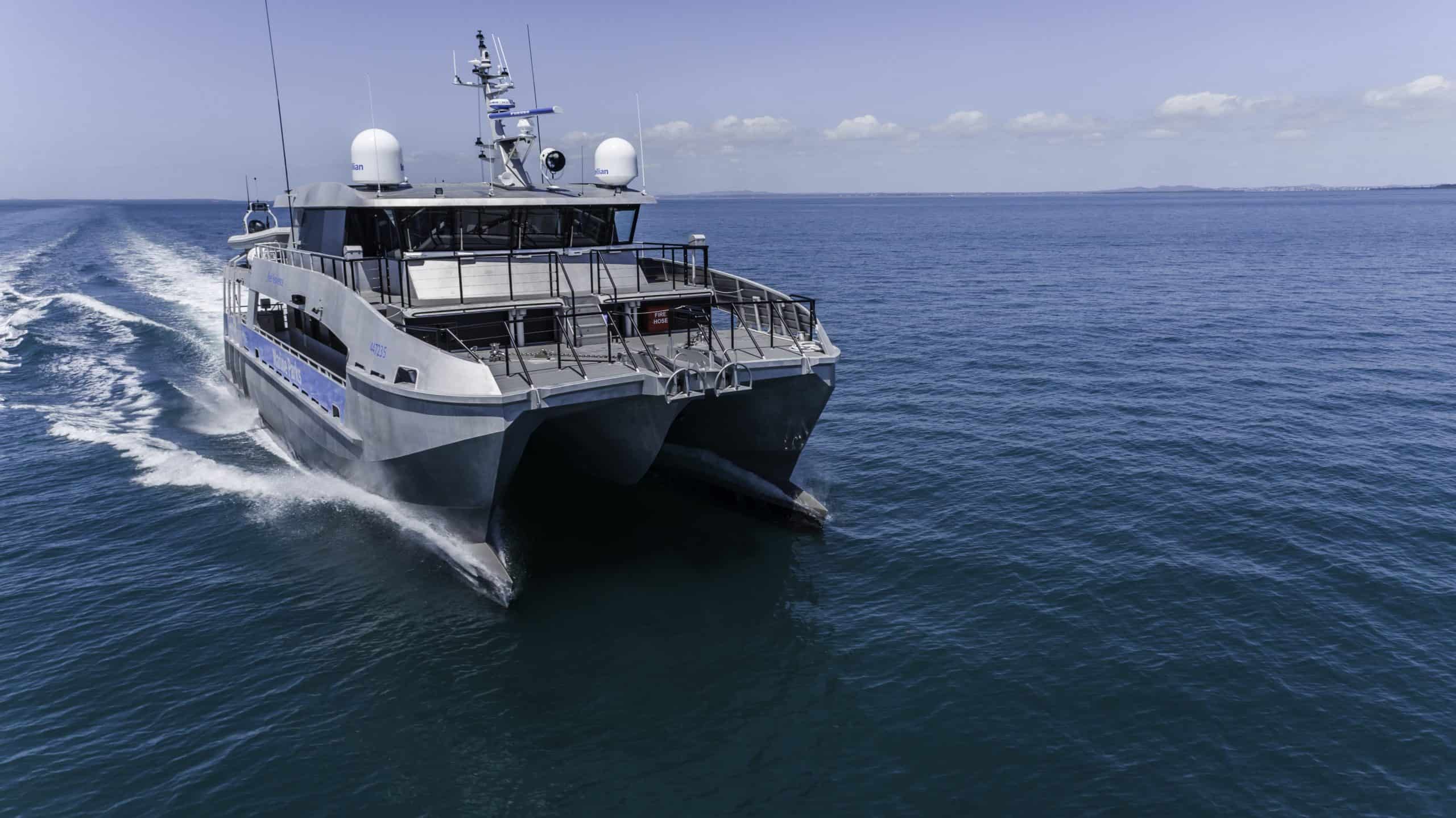

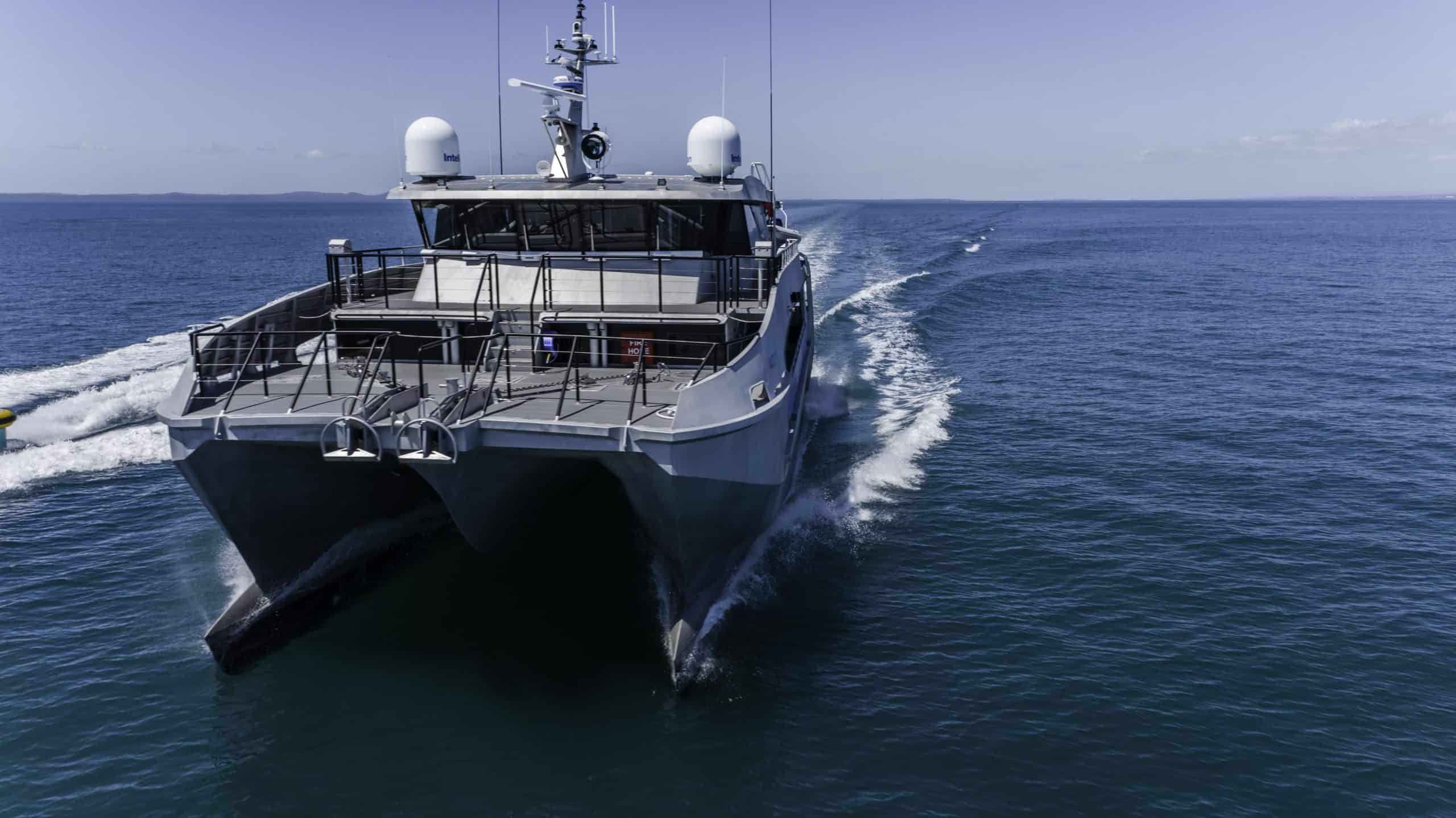

Reef Resilience is a state-of-the-art 24 metre custom-designed aluminium catamaran patrol vessel, designed and built for the Great Barrier Reef Joint Field Management Program.

Servicing the Great Barrier Reef from its homeport of Gladstone, Reef Resilience’s role is compliance monitoring, marine park and island national park management, diving and research operations. The vessel will also operate in remote offshore waters within the Australian EEZ for extended periods of up to 3 months.

The new hull form is designed to handle Queensland conditions up to 200nm from the coast with strong winds and 3 metre significant wave heights and is capable of conducting long transits comfortably at 20 knots.

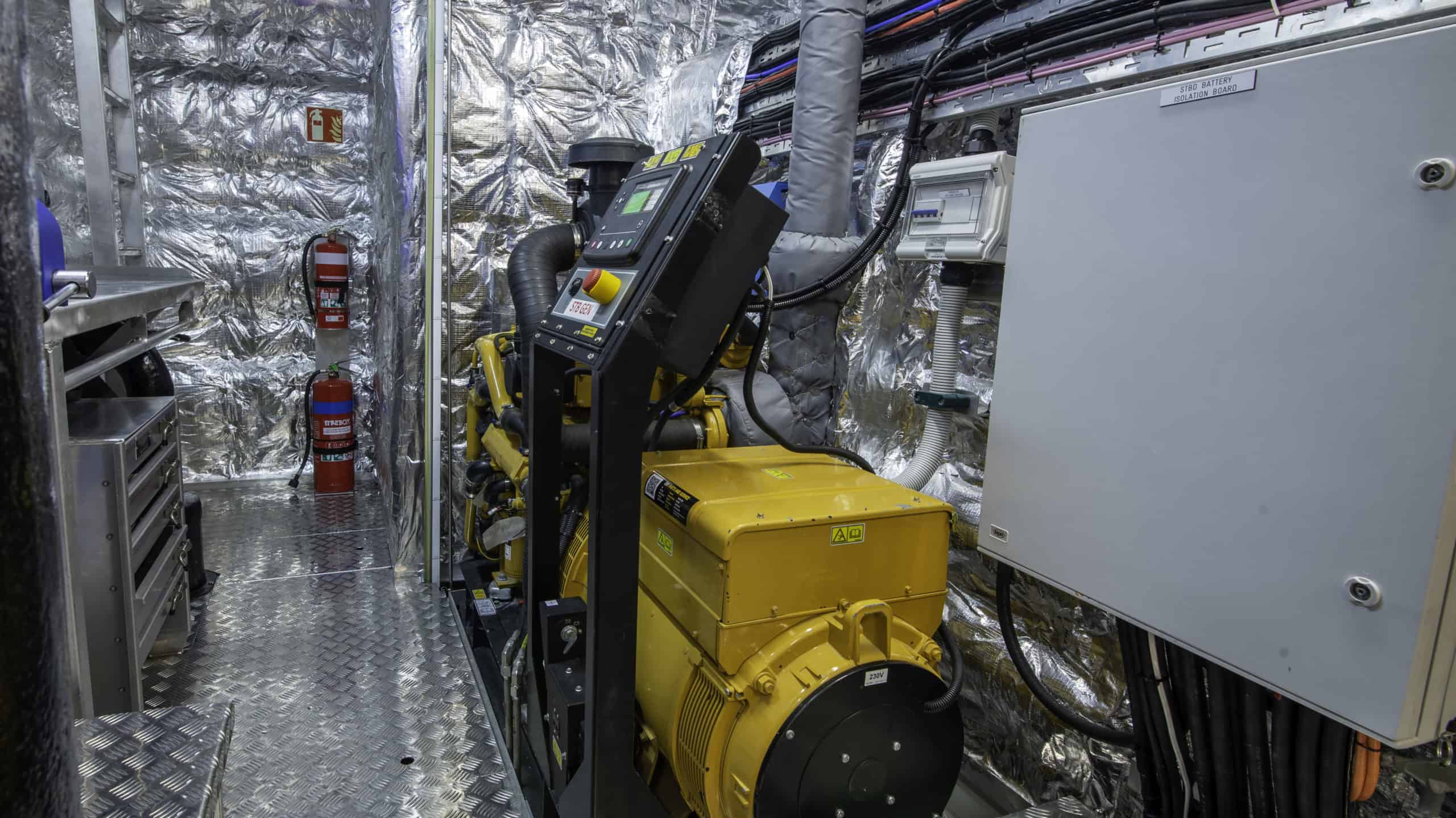

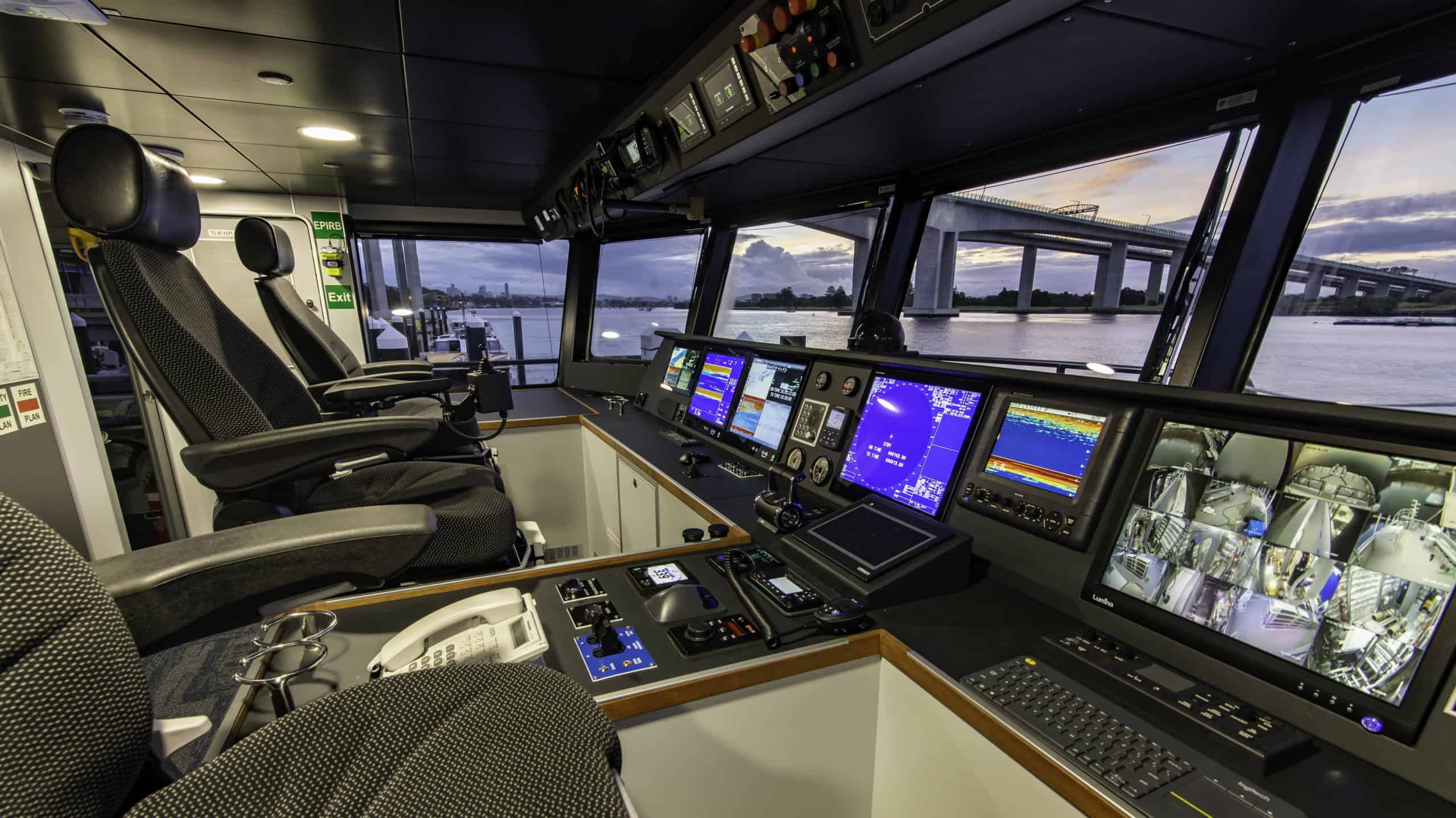

Reef Resilience has an extensive array of onboard systems and equipment, along with significant safety requirements all accommodated effectively and to exacting standards. Our production team worked closely with AMSA Surveyors to ensure the vessel’s long-range offshore regulatory safety and compliance alongside the application of our ISO 9001 quality control system.

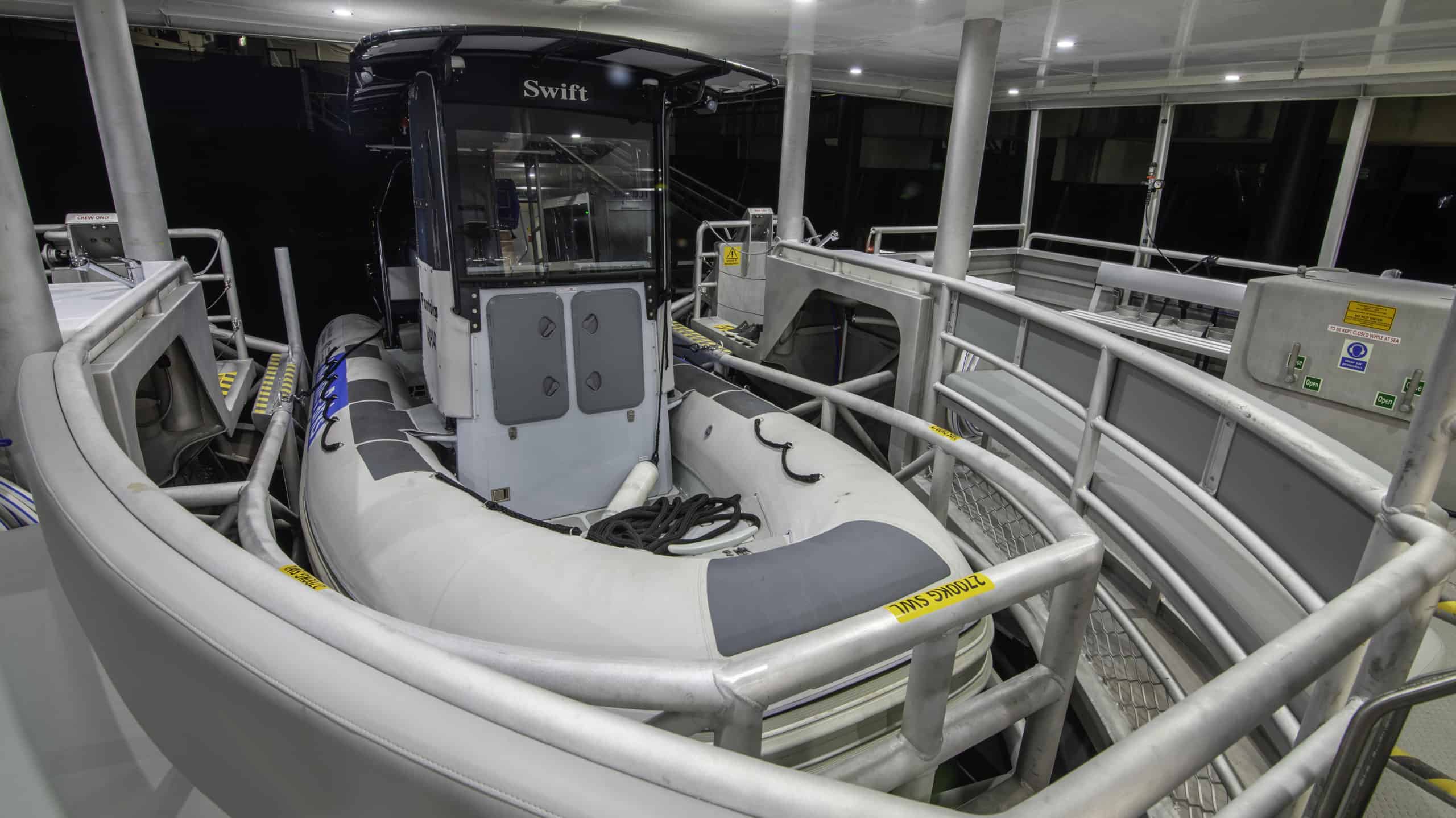

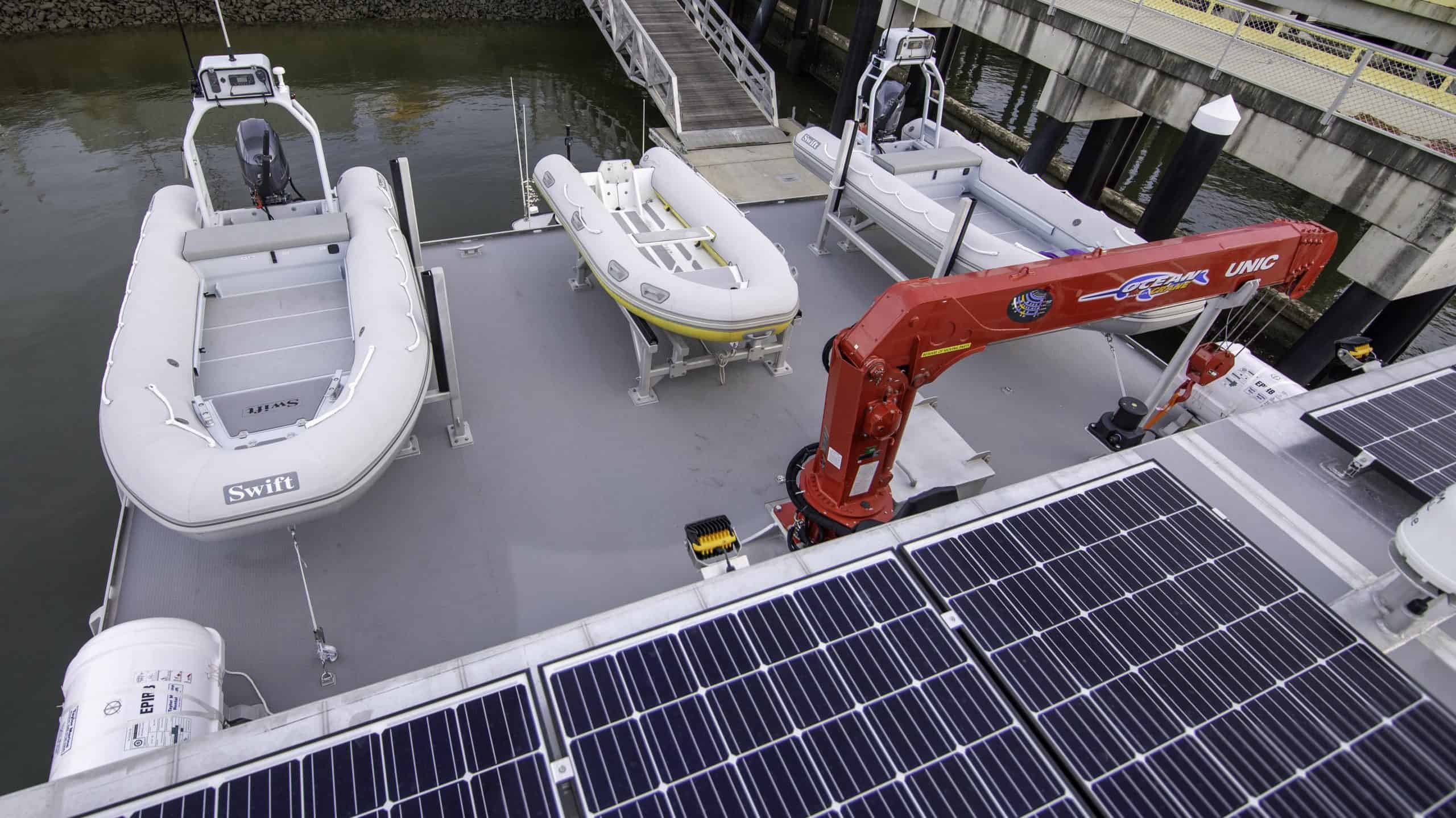

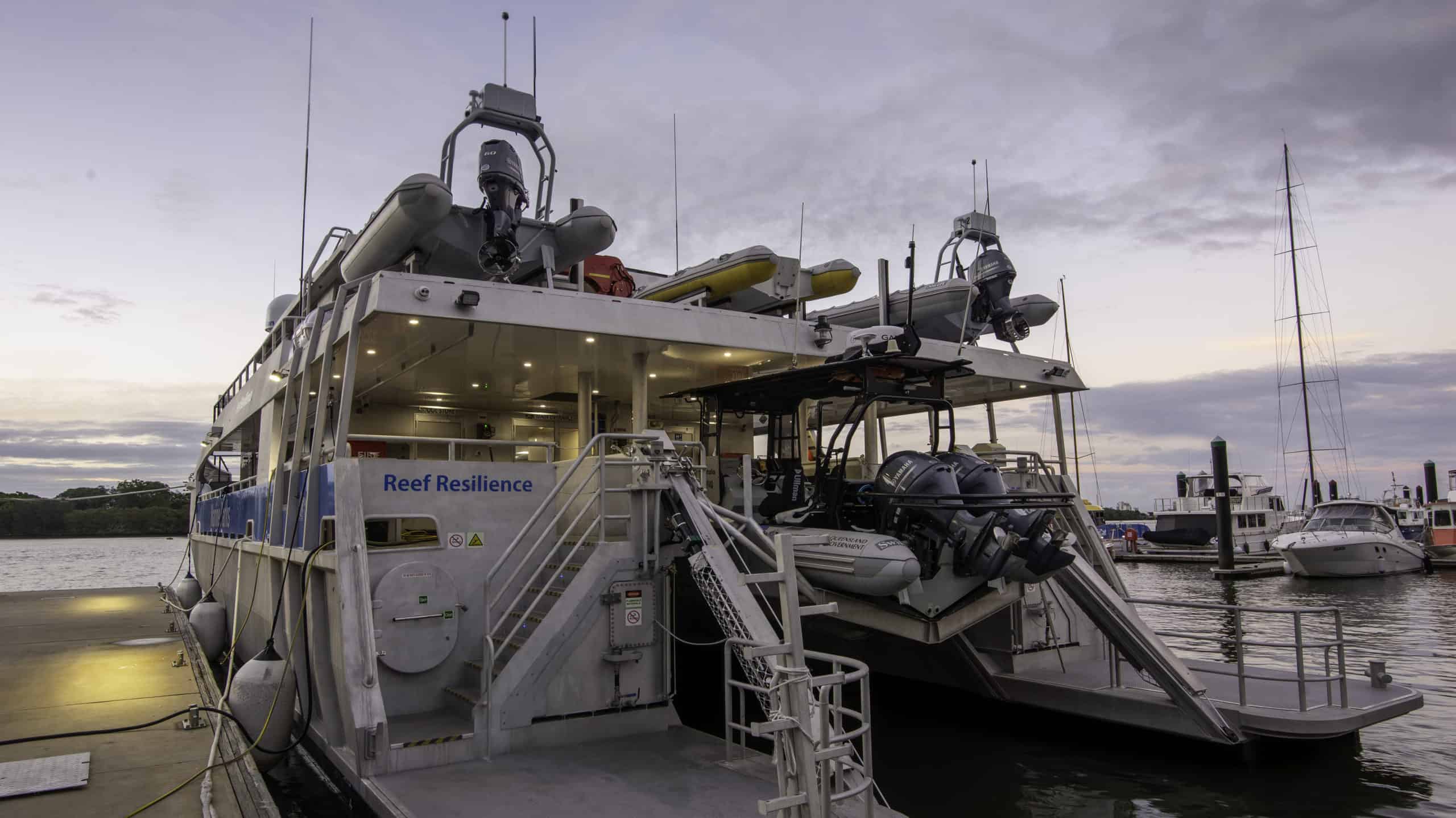

An example of the many custom elements of the custom built vessel is a unique tender lift system that allows for hydraulic rams and a pulley system to launch a large tender at 45 degrees whilst traveling at 6 knots. The system was built to allow the tender to be launched in up to 3 metres of swell.

Reef Resilience is now engaged in protecting Queensland marine parks through the Great Barrier Reef Field Management Program.



Marine Parks 24m-2-red.jpg

Reef Resilience – 24 Metre Long Range Patrol Vessel

Vessel Name: Reef Resilience

Specifications

PLATFORM | Catamaran

LENGTH OVERALL | 24.99m

LENGTH MEASURED | 23.99m

LENGTH WATERLINE | 24.56m

BEAM | 9.5m (OVERALL) 4.53m (MOULDED)

DRAFT HULL | 1.7m

DRAFT MAX | 2.3m

DEPTH | 3.9m

PASSENGERS | 14

CREW | 14

FUEL| 18,000 litres

FRESH WATER | 3,000 litres

SULLAGE | 1,500 litres

SERVICE SPEED | 20 knots

MAXIMUM SPEED | 27 knots

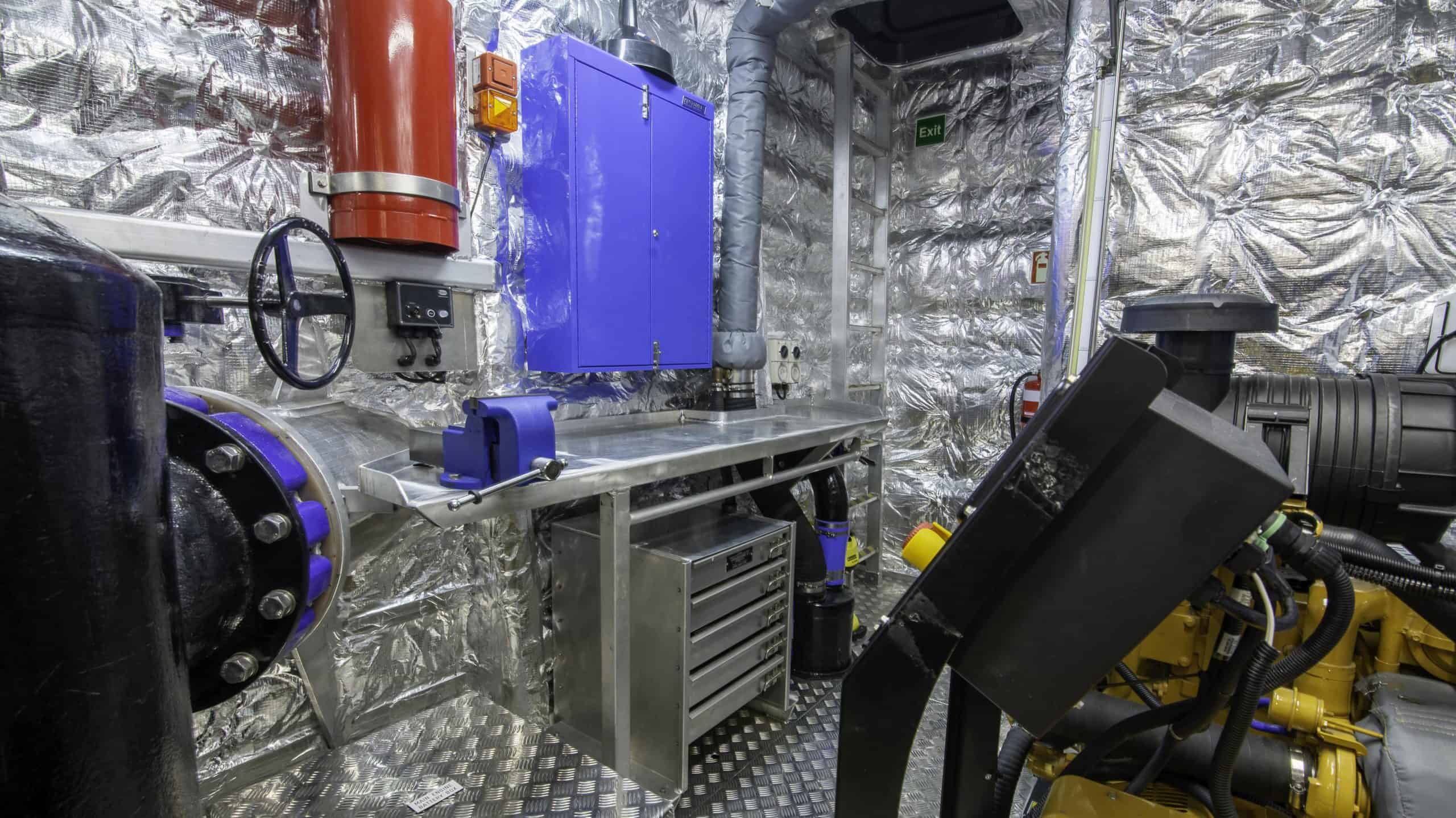

MAIN ENGINES | 2 X MAND2862 LE463

INSTALLED POWER | 2 x 749 kw @ 1950

PROPULSION | 2 X Propellor

CONSTRUCTION MATERIAL Marine Grade Aluminium

FLAG | Dept. of Nat. Parks, Sports and racing

CLASS| NSCV 1C/2B
